1 Introduction

One of the main goals of the testing activity is to reveal the defects introduced in the program during its development. As a consequence, testing contributes to reduce the maintenance costs and to improve the software quality as well. In this scenario, researchers have worked on the investigation and proposition of testing techniques and criteria to be applied into different programming paradigms, such as procedural and object-oriented (OO) ones.

In short, programming paradigms are responsible for defining the way the software has to be structured, being considered as one of the foundations to the development of computer systems. The adoption of a particular paradigm implies on differences from the way to understand and represent the software structures (1) to the process and technologies used (2). Currently, the procedural and OO paradigms stand out as the two most used programming paradigms in the software development.

The particularities and differences in how to deal with the issues imposed by each paradigm provide evidences of the possible existence of different sources of errors during the software development (3). Testing techniques and criteria have been proposed in order to reduce the number of defects in the software through the definition of test cases with a high probability of identifying errors. Functional and structural techniques (and their related criteria) have been widely adopted both in industry and in academy. Besides that, a comparison of testing techniques and criteria can be performed by using some testing properties such as cost, effectiveness and strength.

Some defects can also be related to the programming paradigm adopted. In this perspective, it is important to assess the impact of a specific paradigm on the testing activity. However, most of the experimental studies to evaluate and compare testing criteria are performed with programs built on the same paradigm, not considering the impact of the programming paradigm on the results obtained.

In general, conducting a controlled experiment, or even a quasi-experiment, is an expensive activity, with several requirements to be satisfied. A major problem faced by researchers when conducting a new experimental study in software testing is the lack of infrastructure, i.e., materials, tools and results properly prepared to be used as the basis of the new trial. This is not a new concern and efforts in this direction can be found in (4). In Do et al.’ work, the authors made a survey of several papers with experimental results on testing techniques, reporting the difficulties in conducting them. To address such difficulties, the authors proposed an infrastructure consisting of programs, test cases, defects and scripts already established and that would be ready to perform and replicate the controlled experiments.

Besides the need of conducting new experiments on testing techniques and criteria, many researchers have suggested the introduction of testing concepts in conjunction with programming foundations in introductory Computer Science courses (5, 6, 7). Since testing requires the student to know the behavior of their programs, such activity could be explored to help them understand the abstract concepts of programming and develop the expected skills (6). Furthermore, since testing forces the integration and the application of theories and skills of software analysis, project and implementation, students who start testing earlier could become better testers and developers as well (5, 8).

Motivated by this scenario, in this paper we summarize the results of an experimental study to characterize and evaluate the cost and strength of structural and functional testing criteria, comparing both procedural and OO programming paradigms. A set of 32 programs from the data structure domain was considered in our experimental study. The main goals in the execution of this research were: i) To obtain initial results about the investigated questions; ii) To generate artifacts which can be used as basis to define and conduct further experimental studies; iii) To support training and teaching of software testing activity.

The remainder of this paper is organized as follows. In sections 2 and 3 the definition and planning of the experimental study are briefly described. In Section 4, the main elements for conducting the experiment are presented. In Section 5 the collected data are analised and the achieved results are discussed. Finally, our conclusions and further work are presented in Section 6.

2 Experiment Definition

The definition of the experimental study was based on the template Goal Question Metric (9). Next, we summarize the main points defined:

• Object of Study: The objects of study are the functional and structural testing criteria, applied to procedural and OO paradigms.
• Purpose: The purpose is to characterize and evaluate testing criteria, particularly with respect to the differences between the programming paradigms.
• Quality Focus: The quality focus is the cost and strength of testing criteria, to be evaluated considering the procedural and OO paradigms.
• Perspective: The perspective of the experimental study is considered from the researcher’s point of view.
• Context: The study is performed by the researcher who defined the experiment, considering a set of programs in the data structure domain. It is conducted as a multi-object variation study, i.e., a participant working on a set of objects.

3 Experiment Planning

In the experiment planning we set out the hypotheses and variables of the study. A plan is created, being used as a guide for the conduction and analysis of the investigated subject. Next we provide an overview of the main steps of the planning activity.

3.1 Context Selection

As we defined before, the main goal of our experiment is to investigate if there are differences in cost and strength of testing criteria due to the paradigms in which the programs under test are written. A set of C and Java programs were taken from (10) and (11), respectively. The programs were developed with academic purposes, aiming at exemplifying, for each paradigm, the same solutions in data structure.

Thus, the context of our experiment can be characterized as an offline study, performed by a graduate student, addressing a real problem – identification and comparison of cost and strength of testing criteria – in a specific context.

3.2 Formulation of Hypotheses

Our experimental study aims at defining characteristics about an unknown subject, looking for evidences that can be used in the definition of future hypotheses. Therefore, the proposed hypotheses are not intended to be definitive, but were established in a pragmatic way in order to facilitate the conduction of our experiment.

We assumed that the cost of the testing criteria on a set of programs can be measured in terms of the size of the test set and the number of elements required, and these are mainly influenced by: (i) the programming paradigm in which the programs are implemented; (ii) the testing tools adopted; (iii) the type of the testing criteria used; (iv) the skill(s) of tester(s) to adequately test the programs; and (v) the size and complexity of the programs to be tested.

Setting itens (iii) and (iv) as being the same for two sets of programs A and B, respectively implemented in procedural and objected-oriented paradigms, and considering that the programming paradigms represent different ways to understand and structure the same solution, we believe that there is a cost difference between the sets A and B, influenced by the differences in the paradigms.

Similarly to the costs, we assumed that the strength of each functional and structural testing criterion among two paradigms can be measured in terms of the adequacy of the adequate test set to a given criterion in one paradigm on the same criterion in the opposite paradigm and vice-versa. Considering that the programming paradigms represent different ways to understand and structure the same solution, we believe that there is a strength difference between the sets A and B (the same as the previous hypothesis), influenced by differences in the paradigms. The formal hypotheses are listed in Table 1.

Table 1: Hypotheses Formalized – Cost and Strength

3.3 Selection of Variables

Based on the context and on the hypotheses established, indepedent and dependent variables for the experiment were defined.

3.3.1 Independent Variables

Independent variable is any variable that can be manipulated or controlled in the process of experimentation. The main independent variables of our study are: i) the paradigm in which the programs are implemented; ii) the testing tools adopted; iii) the testing criteria used; iv) the size and complexity of the programs under test; and v) the tester’s skills for applying the testing criteria.

Despite the existence of all these independent variables, the only one considered of interest for our research is the paradigm in which the programs are implemented; indeed, it is the only factor of interest to the experiment. This factor has two treatments: a programming paradigm for OO development and a programming paradigm for procedural development. The other variables in the experiment were set to not interfere in the results obtained.

3.3.2 Dependent Variables

The dependent variables are those in which the result of manipulation of the independent variables can be observed. In our study, the dependent variables defined to describe the costs of the criteria are: i) the number of required elements/program; ii) the number of test cases/program; iii) the number of infeasible required elements/program; iv) the number of required elements/criterion; v) the number of test cases/criterion; and vi) the number of infeasible required elements/criterion; The measures by program correspond to those collected to each program, during the application of a given criterion, considering a particular programming paradigm. The measures by criterion correspond to those collected to all programs, during the application of a criterion in a particular paradigm.

The dependent variables to describe the strength of the testing criteria are: i) coverage/program in the opposite paradigm; and ii) coverage/criterion in the opposite paradigm.

In addition to the dependent variables mentioned above, some other metrics are defined and collected in our study. The goal is to keep some properties that can be relevant and that are correlated to the behavior of the dependent variables, describing details of the scenario of functional and structural testing with respect to the differences in the programming paradigm. These metrics can also be reused in the context of further experimental studies, both for deriving new hypotheses from the information they provide, as well as to comparing test data from measures which are similar to the programs that compose this study.

Actually, a total of twelve implementation metrics are defined: total units (procedures/methods and constructors), total LOC (lines of code without comments), total decision commands; total recursive commands, total units without parameters, total units with primitive parameters only, total unit with abstract parameters (value or reference), total units with mixed parameters (primitive or abstract), total units without return, total units with return of the primitive type, total units with return of the abstract type (value or reference), and cyclomatic complexity (McCabe).

3.4 Experiment Design

The experiment design has a direct impact on how to analyze the results. A suitable design also serves to minimize the influence of adverse factors on the results. As established earlier, our study addresses only one factor of interest, i.e., the programming paradigm of the programs under test – procedural or OO.

Regarding the other independent variables fixed, we applied some principles of design, aiming at reducing the likelihood of experimental errors within the context defined:

• Nesting of testing criteria: Different testing criteria imply different ways of determining cost and strength in each paradigm. To address this issue, we grouped the testing criteria into three levels (functional, structural control flow and structural data flow) within each paradigm, according to the principle of nesting. At the functional level we have Equivalence Partitioning and Boundary Value Analysis testing criteria. At the structural control flow level we have All Nodes and All Edges criteria. Finally, at the structural data flow level we have All Uses and All Potential Uses criteria. The nesting principle allows each level to be evaluated separately within each treatment, enabling an effective comparison of similar conditions (levels) between the two paradigms. “Paradigm” is considered the nesting factor while “Testing criterion” is called the nested factor. We chose the nesting design instead of the crossed design since it allows the comparison of paradigms with respect to the same type of criterion, without implications on the inverse analysis (characteristic of crossed design).
• Order of tests: The principle of randomness is used to define the order in which the programs should be tested and, for each program, the order of the paradigm to be considered first. The order of tests is nested at each level of the criterion, since the testing strategy defined for the generation of test sets is incremental and, therefore, there is a relationship of interdependence with respect to the test set and the criteria.

For the other independent variables fixed we did not apply any principle of design.

The variable “testing tool” was defined with a fixed and distinct value for each one of the paradigms. In the procedural paradigm, the value was determined by the pair CUTE and Poke-Tool, considering the aplication of functional and structural criteria, respectively (12, 13). In the OO paradigm, JUnit and JaBUTi play, in the same order, the tools to apply the testing criteria (14, 15). Although the tools applied in both paradigms are not the same, there is a great similarity in how they operate and in the assertive used. Moreover, both structural testing tools support testing criteria of interest for our study.

The specification of the programs used in the procedural set is the same as the programs used in the OO set. Also, both sets are balanced (same amount of programs for both paradigms).

The test cases were defined for each program and in each level of criteria in an incremental way, i.e., the test set generated at the functional level was reused in the construction of the test set for control flow testing and so on. Actually, it was necessary to organize a testing strategy for enabling such conduction in a systematic way, following the experimental design established.

The testing strategy defined was divided into four sections. The first consisted of generating an adequate test set to the functional criteria. The test set was derived from the specification; therefore, it should be adequate for functional criteria considering both the procedural and the OO versions of the program. This set was the basis for defining the test sets in the next section and the number of required elements in this phase was determined in terms of the number of equivalence classes and boundary values generated.

In the next section we evaluated the coverage of the test set for the second level of testing criteria, i.e. the control flow ones. The coverage achieved in the two paradigms was registered in a testing form of each implementation. Next, new test cases were included into the test set in order to make it adequate for the structural criteria at this level; the infeasible elements were also determined.

The adequate test set obtained in the second section was used as the basis to the structural data flow testing in the third section. Likewise, the coverage achieved in the two paradigms was registered in the testing form of each implementation and new test cases were added in order to make it adequate for the structural criteria at this level; the infeasible elements were also determined.

Finally, the adequate test sets generated (second and third sections) were converted into the language of the opposite paradigm for checking the strength of both types of structural testing.

Figure  1 summarizes the testing strategy described.

---

---

3.5 Experiment Instrumentation

The experiment instrumentation was performed in several steps in order to satisfy the three categories of artifacts required for conducting the experiment: experiment objects, guidelines and measurement tools.

The first category consists of the benchmark programs to which were applied the treatments of the experiment. The programs that constitute the benchmark were obtained from (10) (C programs, representatives of the procedural paradigm) and (11) (Java programs, representatives of the OO paradigm). However, designed with academic purposes, these programs required some adjustments to be used in our study. One reason was the mismatch and/or lack of specifications in an appropriate format for testing and independent for each program. The other reason was the possible incompatibility between the implementations of the two paradigms, in terms of functionalities: some operations implemented in the OO language simply did not exist or were different from those implemented in the procedural language, although they refer to the same specification. Because of this, it was necessary to previously prepare these programs according to the pre-established procedures in the experiment plan. In addition, the specifications were rewritten in a pre-defined standard. The format for the specifications was derived and adapted from the Basili’s lab package (16).

Most of the specifications were based on the original text of (10) and (11). The texts were modified or adapted, according to each case, in order to strictly meet the operating needs of the study (as the decoupling from the description of a specification with some sample source code and the removal of dependencies between texts of different specifications). This action was taken in order to interfere as little as possible on the content of the original text and, at the same time, to meet the needs imposed by the principle of randomness, as previously discussed.

The application of treatments in the experiment required other documents to assist in the execution of tests and specifications. Thus, an implementation document was designed in order to provide the tester with the necessary information for constructing the functional test cases, without the need of reading the programs source code (such as input parameters and types of return expected by each operation).

Additionally to the specification and implementation documents, two forms were defined: (i) a form to assist the definition of equivalence classes for the functional testing; and (ii) a testing form used to register the test cases for each criterion evaluated and the test results obtained.

4 Experiment Operation

The experiment operation includes the preparation of artifacts and tools, the execution of activities defined in the experiment plan and the validation of the data collected during the execution.

4.1 Preparation

The preparation for the experiment took place from the plan definition. After setting up the documents and forms for the tests execution, we had to adapt and configure the testing tools in a robust way so that they could be used throughout the experiment.

As one of the purposes of the experiment was to enable the definition of further experimental studies in testing, the testing tools used were installed and configured so that they could be easily reused in new contexts without the need for rework and with some guarantee of a stable operation. We set up a virtual machine on which the testing tools could be combined and configured to be used. Among the benefits noticed, we point out: (i) portability, not only of the tools and of the operating system, but of a entire system configuration; (ii) possibility of replication and backup generation in a systematic and relatively fast way; (iii) feasibility of evolving tools configurations without compromising a configuration already stable; (iv) possibility of interruption and continuation of a task on different dates, maintaining the same state of the operating system and of the programs used; and (v) persistence of the results internally generated by the copy in use.

According to the experiment planning, the test order was randomly assigned. So, as we had 32 specifications, a distinct value in the range of 1 to 32 was assigned to each program in the benchmark. This number was also used to identify each program during the analysis of the data collected and to name the root directory for each program in the virtual machine. Table 2 shows the identifier of each program, associated with its name and a brief description of its functionality.

4.2 Execution

Execution was the phase that required more time in conducting the experiment. Particularly, the functional testing was responsible for most of the time spent, since its entire process of application is manual and only the verification of assertives is supported by tools. Among the tasks required for carrying out the functional testing we highlight: reading and correct understanding of the specification, definition of the equivalence classes and the limits specified for each operation, writing the test cases (defining inputs, outputs and expected results), implementation of test cases according to the languages under study, verification of the assertives and collection of the measures generated.

The conduction of structural testing consumed less time than the functional testing. At this stage, the initial test sets were settled. Among the tasks required, we can point out: measuring the number of elements generated by the required criteria, coverage analysis of the criteria by the functional-adequate test set, adequacy of the test set to the criteria and identification of infeasible elements. The structural data flow testing, in particular, demanded more time than the control flow because the number of required elements generated were, on average, higher than the first and the identification of the causes of non-coverage were less direct.

The strength analysis was the last testing stage performed. It consumed more time than the structural control flow testing and less time than the structural data flow testing. The time spent, however, was significant in relation to the traditional verification of strength. Indeed, because of the changes of language and paradigm, it was necessary to rewrite the test sets of each language in the language of the opposite paradigm.

4.3 Data Validation

A program can contain many procedures/methods and the testing form is intended for general measures, i.e., it considers all the procedures/methods together. In order to avoid misunderstandings during the collection of measures we used drafts to record the individual measures by procedure/method. After all the operation data of a program had been collected in this draft, they were grouped and counted for the same general context. This decision not only served to modularize the task of collecting but also to facilitate the verification of measurements collected during the review of a testing phase.

5 Data Analysis

The data analysis conducted consisted of presenting all the measures for each type of metric considered in the experiment and, together with the measures of central tendency, obtain information that could be individually analyzed, characterizing the context of programs and test sets involved.

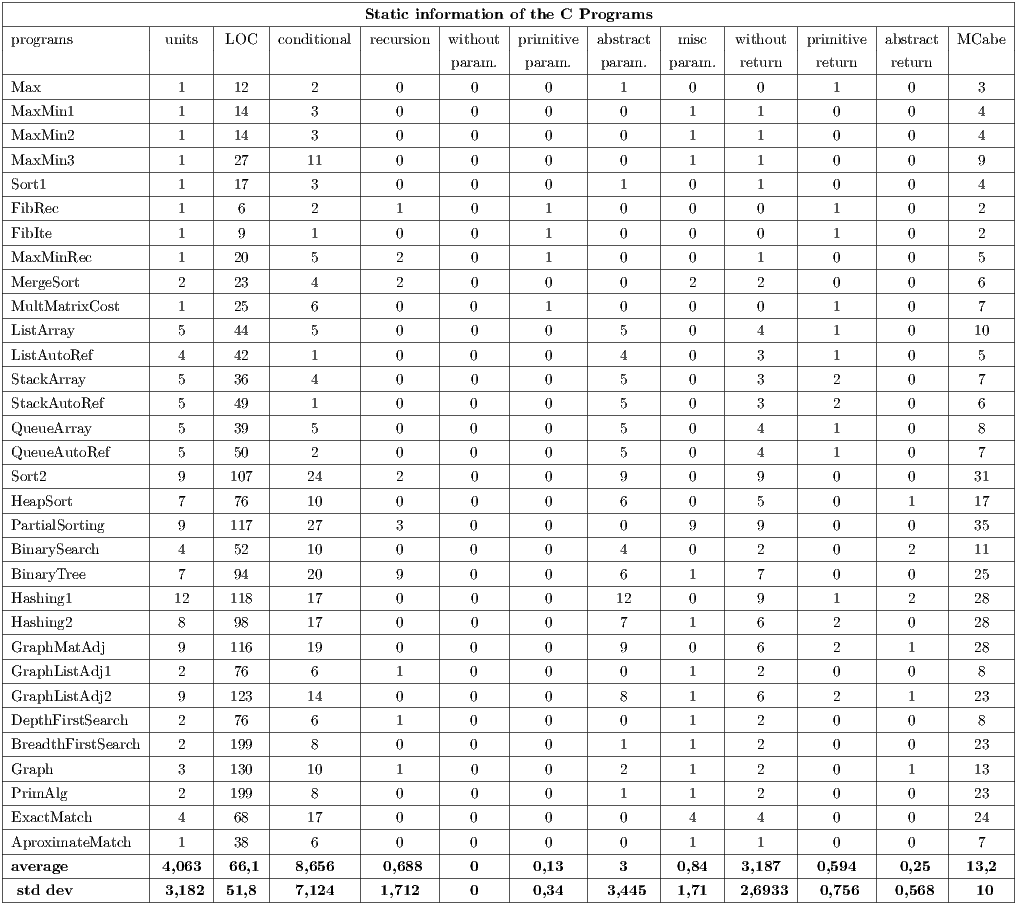

Tables 3 and 4 summarize the results obtained, considering the implementation metrics defined in the experiment plan. Taking into account these results we observed that:

• The medium number of conditional statements (if, while, for) is equivalent in both paradigms, with in the procedural paradigm and in the OO paradigm. The standard deviation ( and ) demonstrates an equivalence in the data variation in these paradigms.
• The cyclomatic complexity was the same in 53.13% of the programs and the medium complexity is approximately the same, and to procedural paradigm and and to OO paradigm.
• The LOC of the procedural programs is, in average, greater than the LOC of the OO programs.
• Considering OO programs, the “total of units with parameters of the primitive type” is, in average, times greater than for procedural programs.
• Considering procedural programs, the “total of units with parameters of the abstract type” is times greater than for OO programs.

The obtained information allows verifying some features of the experiment programs. For instance, the results about conditional statements and cyclomatic complexity demonstrate that the logical structure of the programs in different paradigms is very similar. In relation to input parameters, it can be observed that the arguments of the primitive type are more used in OO programs than in procedural programs and, by contrast, the procedural paradigm uses more arguments of the abstract data type. These results provide evidence that the OO paradigm might help the simplest interactions among entities (or object method) than the procedural paradigm, probably due to the cohesion property between the operations of each entity.

The results related to the return statements demonstrate a well-known behavior. In procedural paradigm, for example, it is natural to use pointer against the parameters with the objective to return values between program functions. In OO programs, the reference normally is created inside the method (creation of an object) and returned in the final of the operation.

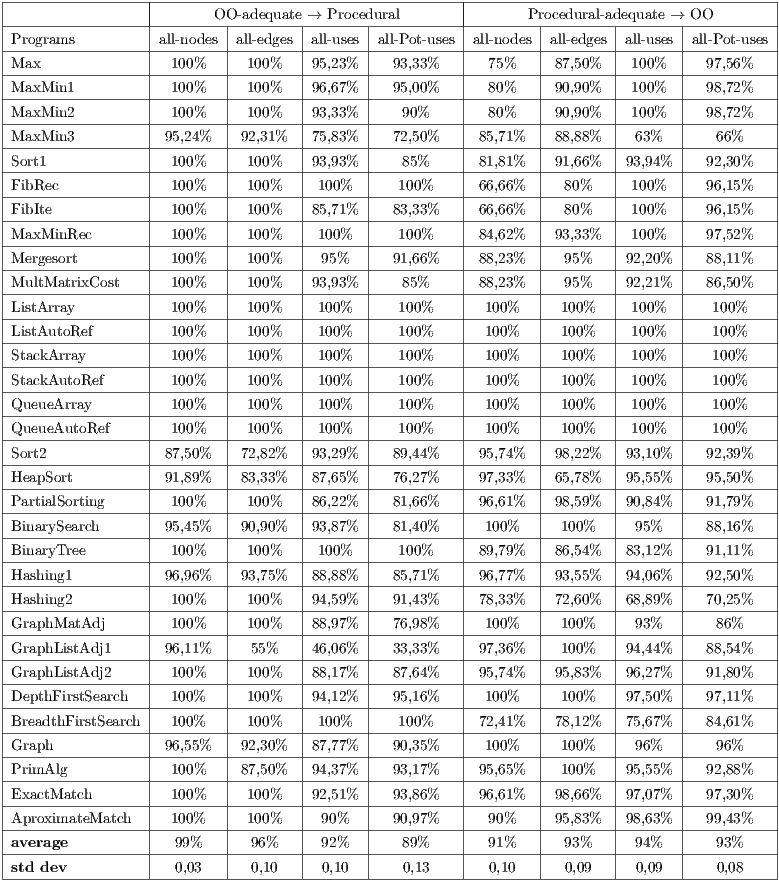

Table 5 summarizes the results about the application cost of the testing criteria, considering the number of required elements (ReqElem), the infeasible elements (Inf.) and the number of test cases adequate (, and ).
